KI1200 OPTIMIZING CROSS-CUT SAW
KI1200 OPTIMIZING CROSS-CUT SAWEquipment introduction:The machine riving down feeding rollers design
KI1200 OPTIMIZING CROSS-CUT SAW
Equipment introduction:
The machine riving down feeding rollers design for a smooth material feeding，even twisted of warped material can be fed quickly through the machine and accurately positioned Pneumatic components and electrical parts are world-class brands for reliable and stable performance Saw spindle and feeding wheels are driven by synchronized teeth belt ，ensures minimum power loss and exact transmission.
Technical parameters:(Basic configuration)
Model | KI1200 |
Saw Blade Diameter | Φ405mm |
Max.cutting size | 75*125mm, (50*180mm) |
Max.cutting thickness | 75mm |
Min Ingoing Length | 250mm |
Saw Spindle Rotation | 4000rpm |
Saw Spindle Motor | 5.5kw |
Servo Feeding Motor | 4.5kw*2 |
Number of Upper Pressure Wheel | 6Pieces |
Number of Down Feeding Rollers | 6Pieces |
Feeding Conveyor Width | 200mm |
Machine size | 6000*1400*1550mm |
Max. Feeding Speed | 100m/min |
Maximum working efficiency | 25-25-30m/min(4-5 cuts per meter) |
Weight | 1600kg |
System Configuration:

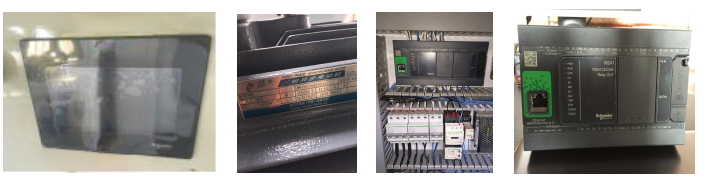

1. Original genuine Schneider Electric The combination of electrical control and manual control is easy to operate.
l Electrical system power supply: 380V50HZ. The control circuit is DC 24V to ensure the safety of the circuit. The entire system is assembled with original genuine Schneider products. After strict system testing, it has passed multiple inspections to ensure compliance with international safety standards.
l Programmable program controller: Schneider PLC, Germany, with fast processing speed and stable performance. The leader in small PLCs.
l Servo system: Taiwan Delta servo, which has high speed and high precision transmission performance, the motor maximum overload current can reach 300%, and the torque force is large.
l Main saw motor: It adopts Beide brand 5.5KW motor produced by Siemens (China), which has the characteristics of high protection level and stable operation.
Schneider's 7-inch touch screen design makes operation simpler and more intuitive.
2.Sensor: German SICK sensor, with high recognition and fast response, it is in an absolute leading position in the global optical sensor field.
3.Remote control is used to solve the worries of customers.

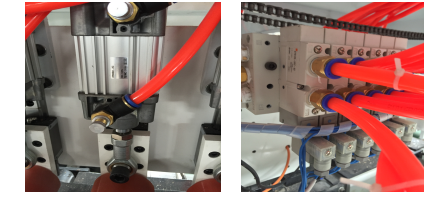

4..SMC cylinder, five-way valve and valve block equipped with SMC as standard: Low control current and fast response speed are a strong guarantee to ensure the accuracy of machine tools.

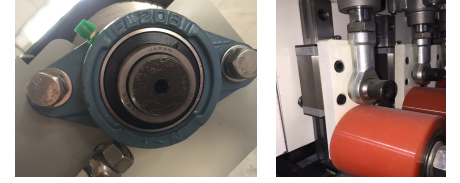

5.Both the main spindle and the transmission part adopt original NSK original factory accessories. According to the force analysis, the bearing point of the main shaft adopts double bearing design to make the main shaft rotate smoothly and durable.
![N5GVSJ4G(B]MQ7@~XCOQ536.png](/upLoad/image/20200518/15897805954916731.png "N5GVSJ4G(B]MQ7@~XCOQ536.png")
Package：Plastic membrane packing.For special requirements can be forther consultations
Delivery Date:
Delivery in 30 working days since receipting deposit
