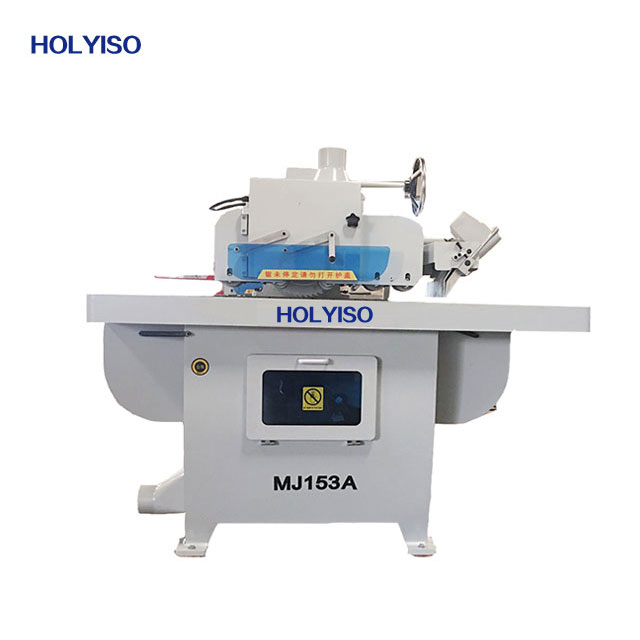

MJ153A Rip saw
MJ153A Rip sawTechnical Parameter: Max.working thickness85mmMin.working length120mmSaw bl
MJ153A Rip saw
Technical Parameter:
Max.working thickness | 85mm |
Min.working length | 120mm |
Saw blade and fuselage distance | 460mm |
Saw spindle aperture | 30mm |
Saw blade diameter and working | Φ250(10-60)mm |
Φ305(10-85)mm | |
Feed speed | 13.3-23.3m/min |
Spindle motor | 3500r/min |
Saw blade motor | 5.5kw-7.5kw |
Feed motor | 0.75kw |
Diameter | Φ100mm |
Machine dimension | 2024*1337*1480mm |
Machine Weight | 1000kg |
