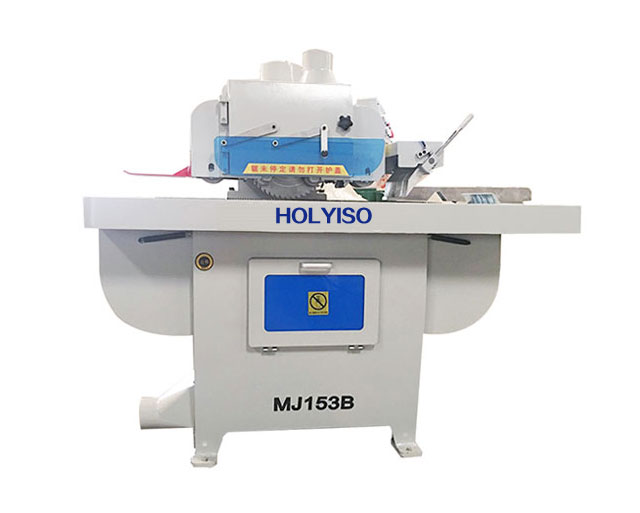

MJ153B Rip saw
MJ153B Rip sawTechnical Parameters ModelMJ153BWorking thickness5-90mmMax working width360mmMin
MJ153B Rip saw
Technical Parameters
Model | MJ153B |
Working thickness | 5-90mm |
Max working width | 360mm |
Min working length | 250mm |
Max. blade diameter | 305mm |
Spindle motor power | 7.5kw |
Feeding motor power | 0.75kw |
Total power | 8.25kw |
Saw Blade diameter | 25.4mm |
Spindle speed | 3750r/min |
Feed speed | 3-23.3m/min |
Working table size | 1320*950mm |
Overall size | 1750*980*1450mm |
Packing size | 1850*1080*1550mm |
Net weight | 950kg |
