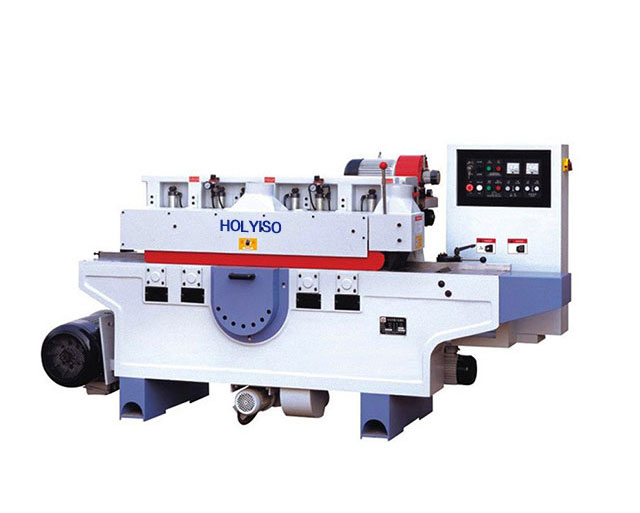

MJ162 Bottom rip saw (economy type)
MJ162 Bottom rip saw (economy type)Technical Parameters: Specifications ＆modelsMJ162(Main shaf
MJ162 Bottom rip saw (economy type)
Technical Parameters:
Specifications ＆models | MJ162(Main shaft lifting) |
Sawing thickness | 10-80mm |
Maximum sawing width | 430mm |
Minimum sawing length | 200mm |
Maximum saw blade diameter | Φ355mm |
Main motor power | 11kw |
Feed motor power | 0.75kw |
Lifting box lifting motor power | 0.25kg |
Total power | 12KW |
Saw shaft diameter | Φ50.8mm |
Spindle speed | 2900r/min |
Feeding speed | 10-33m/min |
Voltage | 380v |
Working desk size | 1500x700mm |
Dimensions | 1650x1100x1400mm |
Packing size | 1650x1200x1500mm |
Weight | 1100kg |
