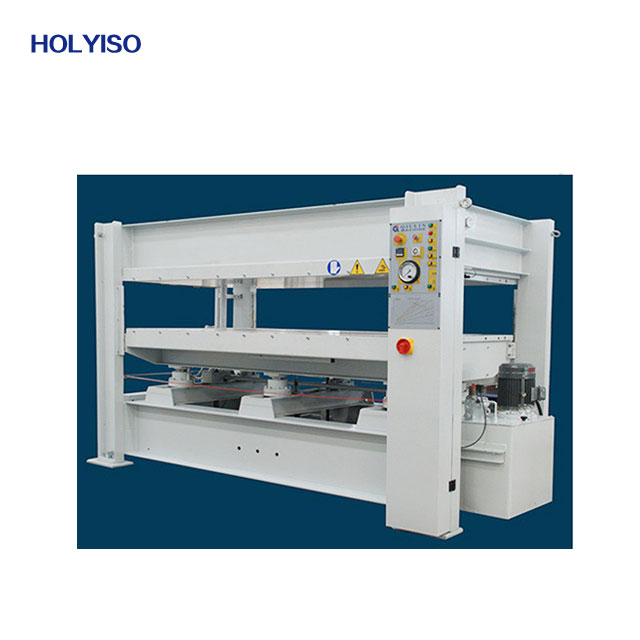

100T Hot press machine
100T Hot press machineProduct name：HOT PRESS MACHINEModel：AY214×8/10(1)HRC-B1Total pressure：1000KN/1
100T Hot press machine
Product name： | HOT PRESS MACHINE |
Model： | AY214×8/10(1)HRC-B1 |
Total pressure： | 1000KN/100T |
Specific pressure: | 3.2Kgf/cm2 |
Working layer： | 1 |
Platen No.& Size： | 2-2500x1300x42mm(Covered with mylar) |
Platen opening： | 380mm |
Cylinder No.& Dia： | 6-φ85mm |
Max temperature： | 120℃ |
Heating way： | Electric heating with thermic oil |
Heating medium: | Thermic oil |
Installation power： | 28.75kw |
Platen opening way： | Automatically |
Loading way： | Length side,Manually |
Voltage： | As per your request |
Packing： | Bare but properly secured |
Gross Weight： | About 6000.00 kg |
Overall dimension: | 3600x1710x2080mm |
Container need： | 1X20'GP |
Payment： | 30% by T/T as deposit, 70% by T/T before shipment. |
Delivery time: | 30 days |
Remark :The specialized valves imported from Germany.
Function:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Quotation valid time: 30 days.
After sales: The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.
Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.
