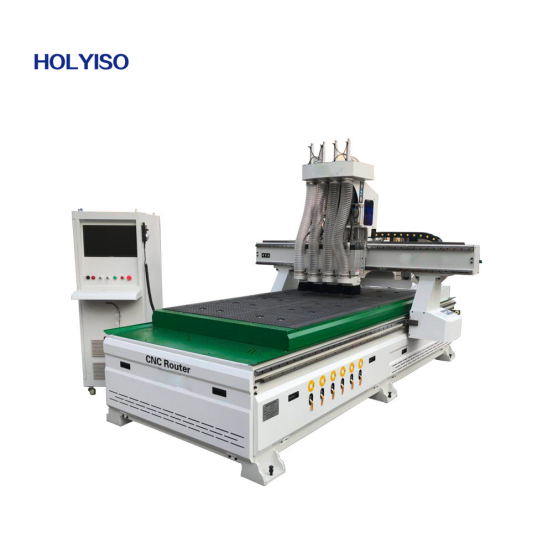

KI2412-T4 CNC Cutting Machine(Four Processes)
KI2412-T4 CNC Cutting Machine(Four Processes)Technical specificationWorking Area1200*2440mmTraveling
KI2412-T4 CNC Cutting Machine(Four Processes)
![]M9EK@TV}(7O3H54I{CE0S7.png](/upLoad/image/20200514/15894457102401685.png "]M9EK@TV}(7O3H54I{CE0S7.png")
Technical specification
Working Area | 1200*2440mm |
Traveling Area | 1320*2540*160mm |
Idling Speed | 100m/min |
Working Speed | 12-20m/min |
Spindle Power | 4*6KW |
Spindle Speed | 18000r/min |
Working Voltage | 380V/50HZ/3PH or Customized |
Driving System | Servo Motor and Drive |
Locate Mode | Five Point Positioning(2 positioning cylinder for X axis, 3 positioning cylinder for Y axis.) |
Control System Matching | Syntec, Baoyuan and Weihong |
Table Structure | Partition and Adsorption Table |
Features:
1. Power Feeding Rubber Wheel Platform
2. Automatic Oil Lubrication System
3. Pneumatic Push Plate Cutting Device
4. Imported Precision Helical Guide
NOTED:
Shipping by LCL(Less Than Container Load) will Need Additional Wood Package Charges, FCL(Full Container Load) Will Not Need This Charges.
1. Term of Price: FOBQINGDAO and FOBGUANGZHOU Price.
2. Validity of this Quotation: 30 Days.
3. Terms of Payment: 30% Deposit in Advance to Start Production, the 70% Balance Should be Paid Before Shipping, Small Deposit Available.
4. Delivery Date: Within 30 Working Days After Receiving Deposit.
5. Payment Method: T/T(Bank Transfer), West Union, Money Gram, LC and etc.
6. The above pictures and technical parameters are just for reference. Future upgrading of the machines, please forgive us if not notice you separately.
7. Overseas engineer service available
