MX3514B Manual Finger Joint Shaper
MX3514B Manual Finger Joint ShaperTechnical Parameters: Work table size650*540mmMax w

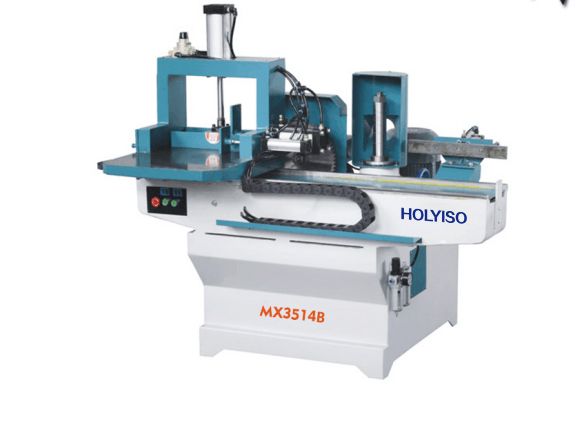

MX3514B Manual Finger Joint Shaper
![]`F)OWQ9}IE)%%K4K24[L[A.jpg](/upLoad/image/20200514/15894391833374799.jpg "]`F)OWQ9}IE)%%K4K24[L[A.jpg")
Technical Parameters:
Work table size | 650*540mm |
Max working width | 400mm |
Max.working height | 140mm |
Shaper spindle diameter | Ø50mm |
Finger cutting knife diameter | Ø160mm |
Shaper spindle speed | 7000r/min |
Cut off saw speed | 2840r/min |
Cut off saw shaft diameter | Ø25.4mm |
Cut off saw diameter | Ø305mm |
Cut off saw power | 2.2kw |
Shaper spindle power | 7.5kw |
Working air pressure | 0.4-0.6mpa |
Overall size | 1500*1410*1460mm |
Net weight | 550kgs |
