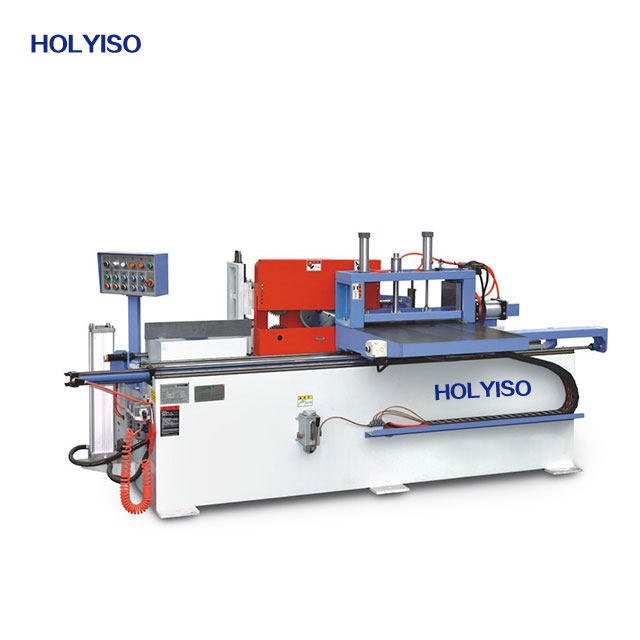

MXB3515T Automatic finger shaper with automatical gluing device
MXB3515T Automatic finger shaper with automatical gluing deviceSpecification:Max working width600mmW
MXB3515T Automatic finger shaper with automatical gluing device
Specification:
| Max working width | 600mm | |||
| Working thickness | 150mm | |||
| Shaper blade size | Φ160xΦ50mm | |||
| Main saw blade size | Φ255xΦ30mm | |||
| Scoring saw balde size | Φ180xΦ19mm | |||
| Shaper spindle speed | 5000rpm | |||
| Main saw blade speed | 2840r/min | |||
| Scoring saw spindle speed | 2840r/min | |||
| Shaper spindle power | 11kw | |||
| Main saw blade power | 4kw | |||
| Scoring saw power | 0.75kwx2 | |||
| Gluing power | 0.37kw | |||
| Gluing pump power | 1.5kw | |||
| Total power | 18.37kw | |||
| Pressure of air system | 0.6-0.8MPa | |||
| Overall dimensions(LxWxH) | 3200*1800*1460mm | |||
| Weight | 1400kg | |||

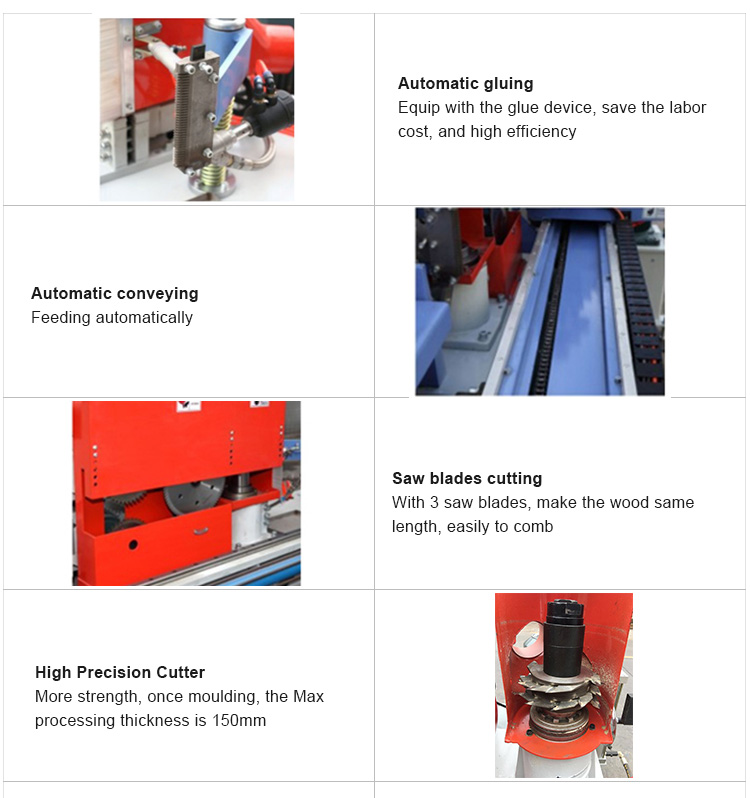

Details:
