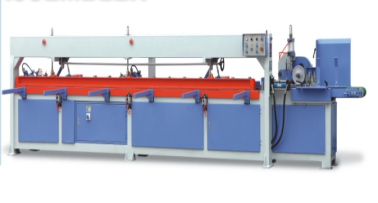

MHB1562 Automatic finger assembler machine
MHB1562 Automatic finger assembler machineParameter:Max assembly length6200mmMax assembly width150mm
MHB1562 Automatic finger assembler machine
Parameter:
| Max assembly length | 6200mm | |||
| Max assembly width | 150mm | |||
| Max assembly thickness | 80mm | |||
| Max jointing force | 7.8t | |||
| Saw blade spindle power | 4.0kw | |||
| Oil pump motor power | 2.2kw | |||
| Saw blade spindle speed | 3700rpm | |||
| Feeding speed | 30-60m/min | |||
| Infeed conveyor power | 0.75kw | |||
| Hold-down wheel feeder power | 0.75kwx2 | |||
| Overall dimensions(LxWxH) | 8500*1700*1500mm | |||
| Weight | 2500kg | |||
