Woodworking Machinery

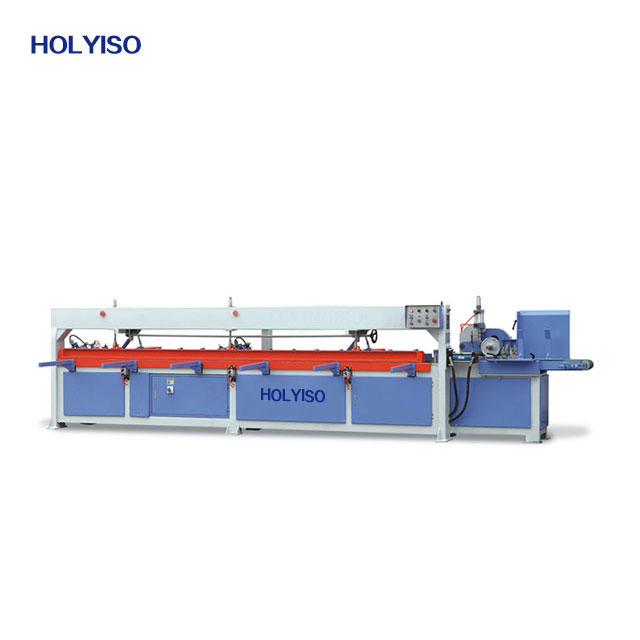

MH1525 Finger Joint Assembler
MH1525 Finger Joint AssemblerParameter:Max.working length2500mmMax.thrust for oil pressure400
MH1525 Finger Joint Assembler
Parameter:
| Max.working length | 2500mm | |||
| Max.thrust for oil pressure | 4000kg | |||
| Worktable size | 2500x350mm | |||
| Max.working thickness | 70mm | |||
| Oil pump power | 2.2kw | |||
| Cut off saw power | 1.5kw | |||
| Main spindle speed | 2840r/min | |||
| Max.blade diameter | 305mm | |||
| Working air pressure | 0.8MPa | |||
| Packing size | 3700x1100x1600mm | |||
| Overall size | 3600×1050×1500mm | |||
| Net weight | 500kg | |||

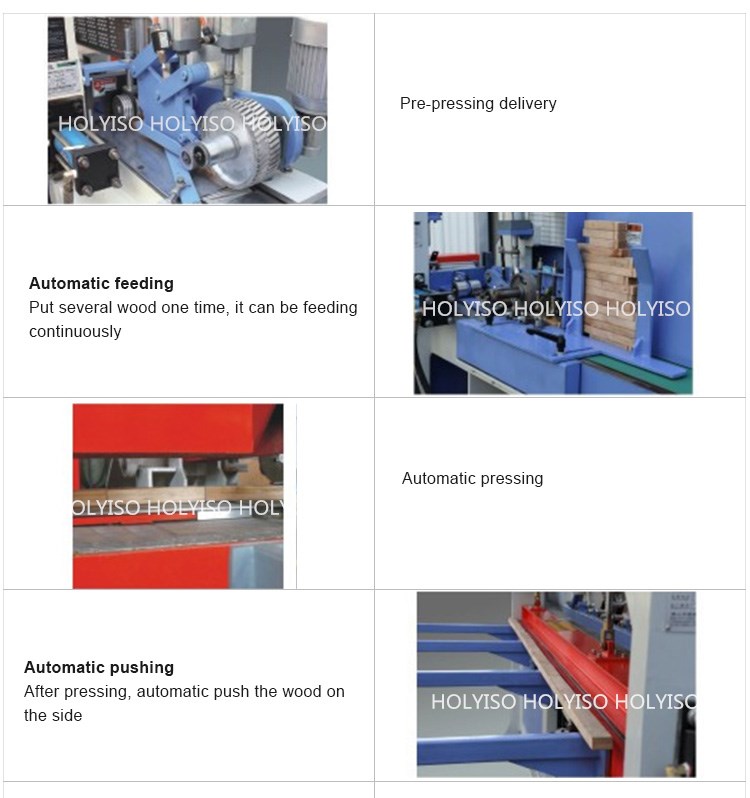

Details:
