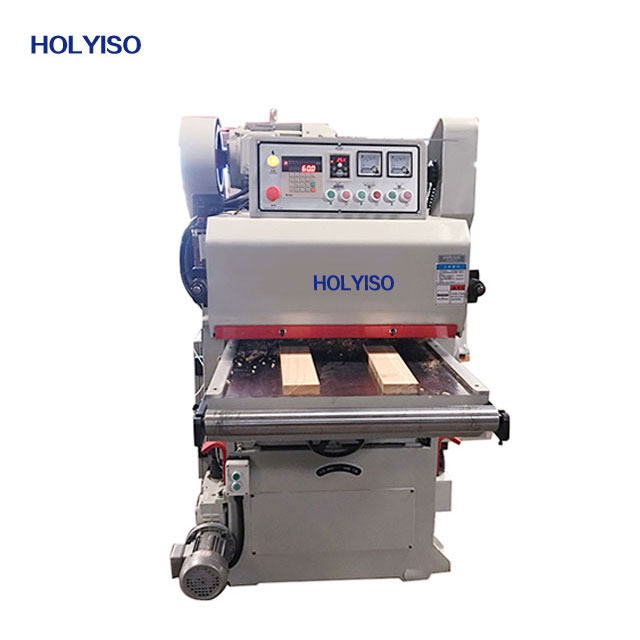

MB206F Heavy Duty Double Sides Planer With Helical cutter(Stepless speed)
MB206F Heavy Duty Double Sides Planer With Helical cu
MB206F Heavy Duty Double Sides Planer
With Helical cutter(Stepless speed)
Technical Parameters:
Max. working width | 25-610mm |
Max. working thickness | 10-150mm |
Min. working length | 260mm |
Max. cutting depth (upper spindle) | 4mm |
Max. cutting depth (bottom spindle) | 4mm |
Cutting Tool Spindle diameter | 100mm |
Knife Nos.on Top cutter head | 90pcs |
Knife Nos.on Bottom cutter head | 90pcs |
Knife Sizes | TCT30X12X1.5mm |
Cutting Spindle speed | 4800r/min |
Feeding speed | 7-16m/min |
Upper spindle motor power | 11kw(15HP) |
Bottom spindle motor | 5.5kw(7.5HP) |
Feeding motor power | 2.2kw(Stepless Speedl) |
Lifting motor power | 0.37kw |
Total motor power | 21.07kw |
Dust Exit Diameter | 150mm |
Voltage | 380V |
Overall size | 2500x1200x1750mm |
Packing size | 2600x1300x1850mm |
Net weight | 3500kg |

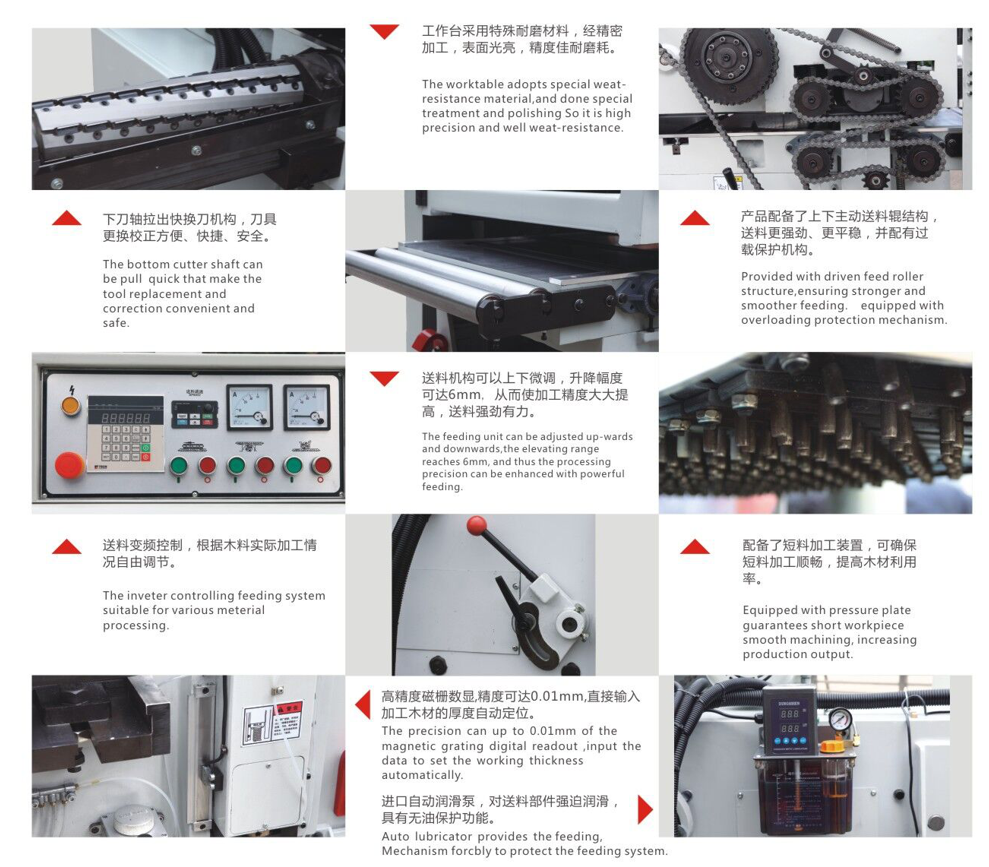

Features:
1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.

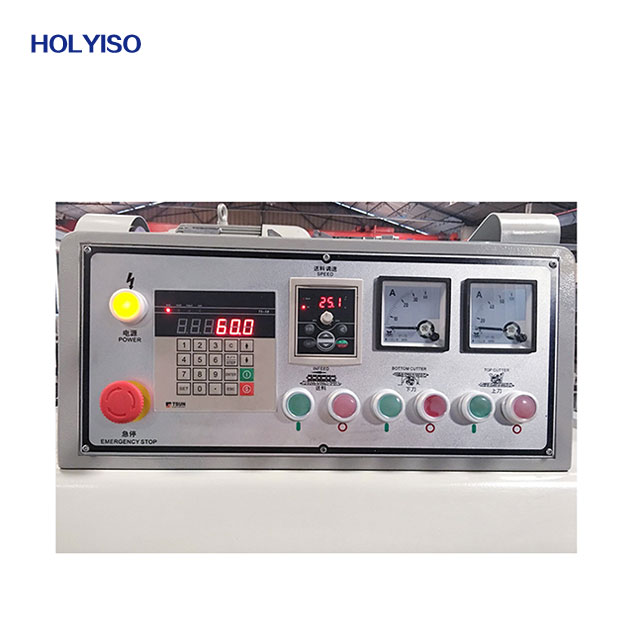

6.Equipped with imported digital display device. Operation is convenient and the working accuracy is up to 0.01mm. Also feeding speed can be shown.
