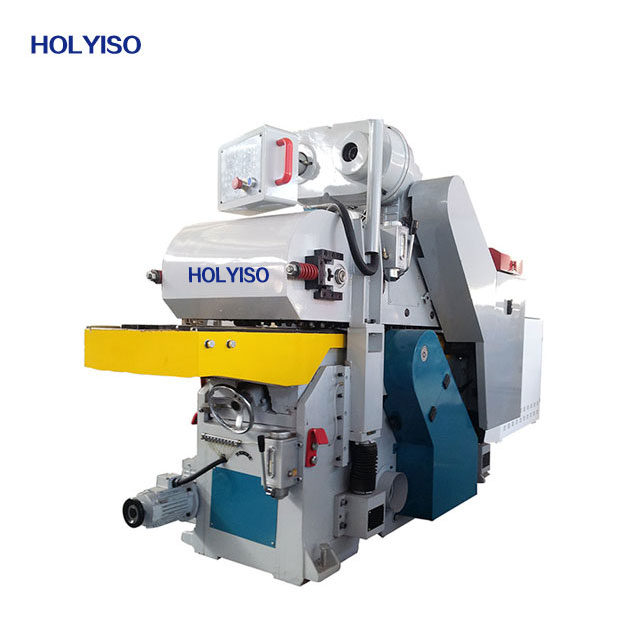

MB204H Double-Side Planer



Technical parameters:


Model

MBQ204H

Working width

25*450mm

Working thickness

10*180mm

Working table length

260mm

Max.cutting depth

4mm/4mm

Cutting spindle diameter

100mm

Cutting spindle speed

4600r/min

Feeding speed

3-20m/min

Upper cutting spindle motor power

7.5kw

Bottom cutting spindle motor power

5.5kw

Feeding motor power

2.2kw/3.7kw(Frequency Control)

Lifting motor power

0.37kw

Total power

15.57kw/17.07kw

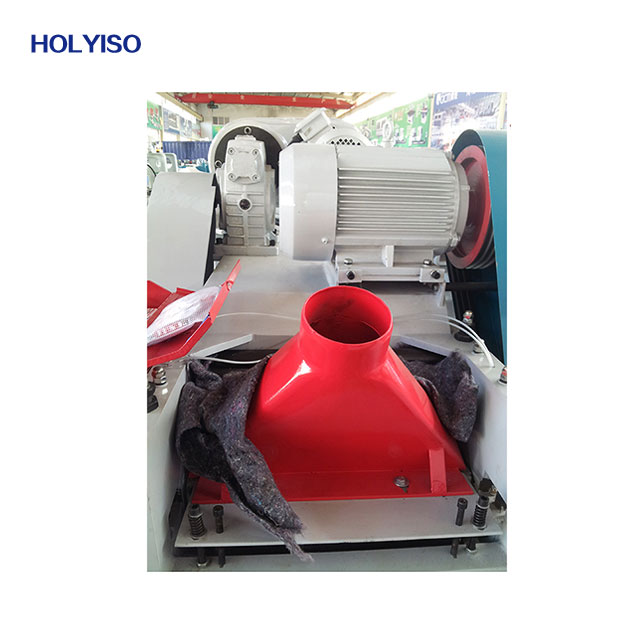

Dust exit diameter

150mm

Overall size

2500*1050*1750mm

Packing size

2600*1150*1850mm

Net weight

2500kg

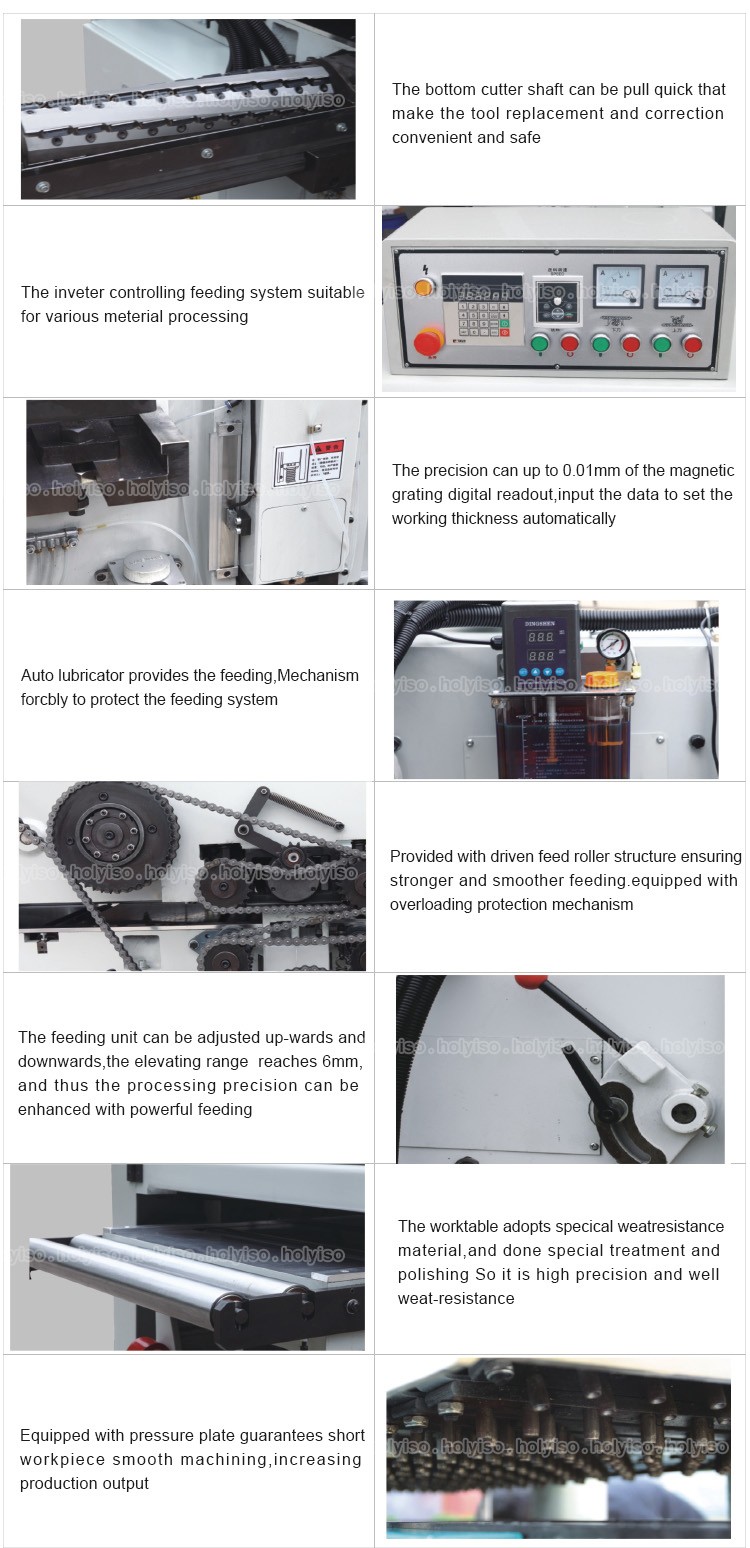

Details:

photobank (3).jpg



Applications:



Processing of single-side, double sides for sets of furniture, all kinds of woodiness material and laminated wood.

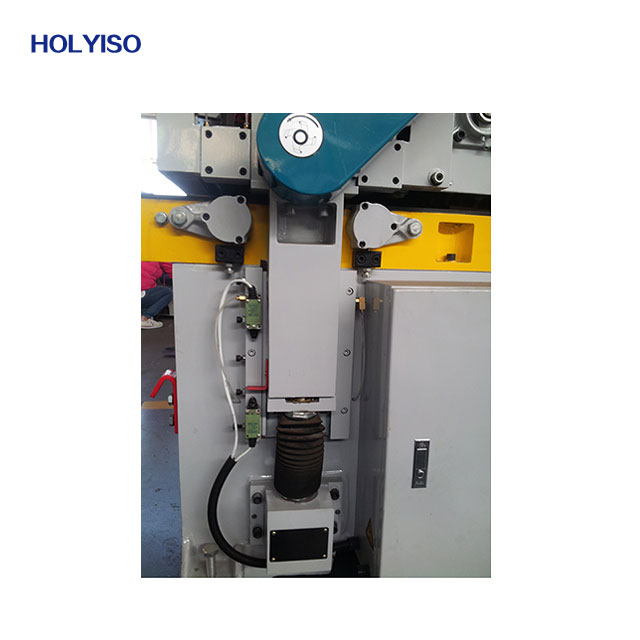

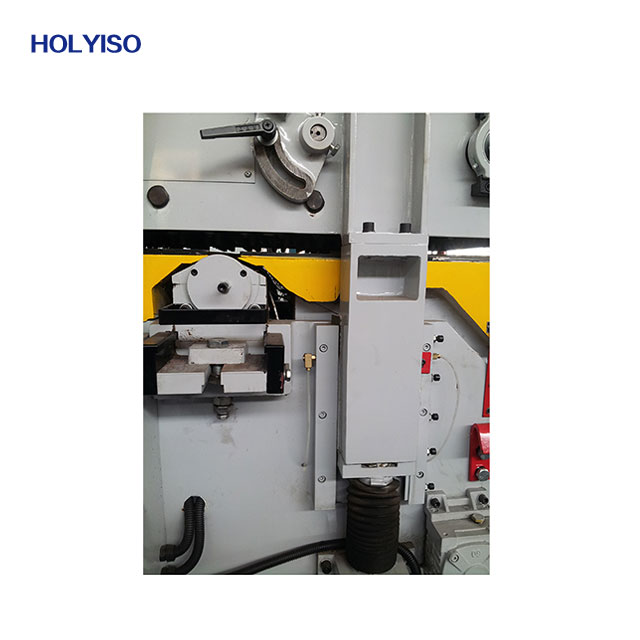

1. The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.



2. With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.



3. The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.



4. Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.



5. Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.

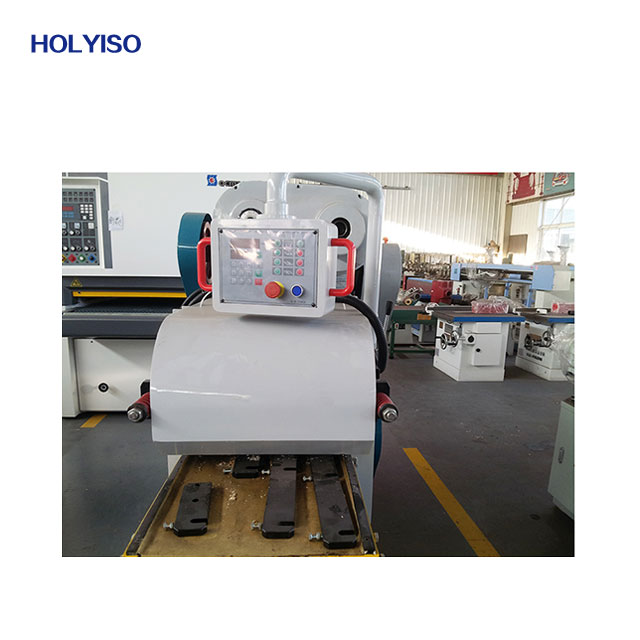

     6.Equipped with imported digital display device. Operation is convenient and the working        accuracy is up to 0.01mm. Also feeding speed can be shown.
