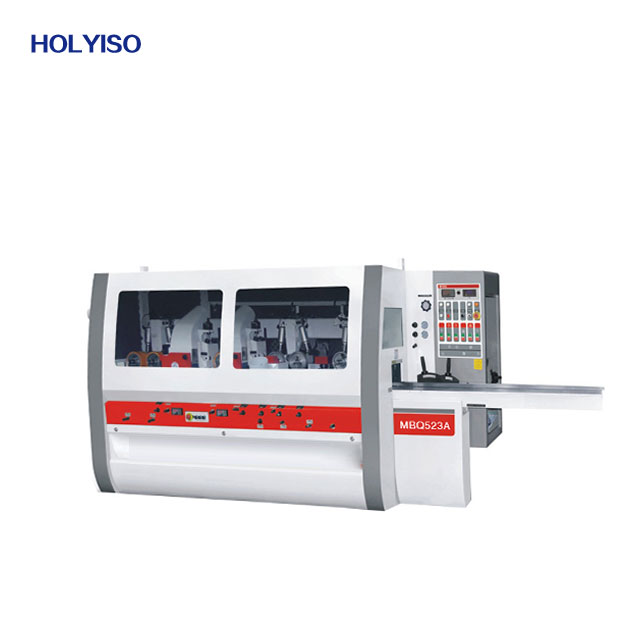

MBQ523A Four-side moulder
Machine Frame:

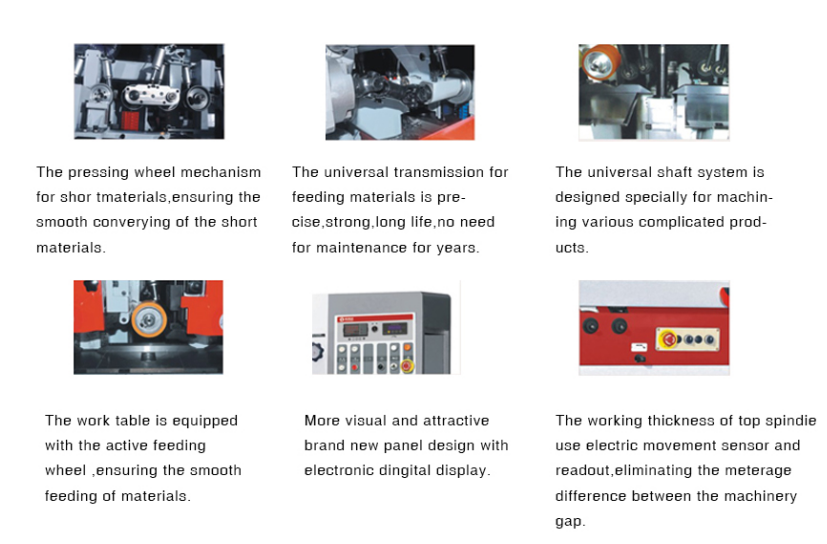

Features:
Specification:
Model | MBQ523A |
Max.working width | 230mm |
Min.working width | 25mm |
Max.working thickness | 150mm |
Min.working thinkness | 8mm |
Spindle amounts | 5pcs |
Spindle speed | 6000rpn |
Feed speed | 6-35m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ200 |
Left vertical cutter | φ125-φ200 |
First top cutter | φ125-φ200 |
Second bottom spindle | φ125-φ200 |
Motor power First bottom cutter | 7.5kw/10hp |
Right vertical cutter | 7.5kw/10hp |
Left vertical cutter | 7.5kw/10hp |
Fist top cutter | 11kw/15hp |
Second bottom cutter | 7.5kw/10hp |
Feed motor | 5.5kw/7.5hp |
Beam elevation | 0.75kw/1hp |
Total power | 47.25kw/63hp |
Feeding wheel Dia. | 140*35*50 |
Suction hood Dia. | φ140 |
Overall dimensions | 3710*1635*1735mm |
Packing dimensions | 3850x1950x2100mm |
Weight | 3100kg |
Outstanding Characteristic:
1.Each main shaft is driven by independent electric motor,cutting force is powerful
2.Main shaft is adjusted to focus on the front,operation is convenient.
3.Hard chrome plating work table is durable.
4.Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
5.Multi-group drive rollers improve feeding efficiency.
6.Pneumatic compressed feeding roller is applied,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
7.Adopts central charging system,features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.Spare parts are thick and solid to maintain high precision,high stability and high reliability.
10.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
11.The universal shaft system is designed specially for machining various complicated products.
